Application

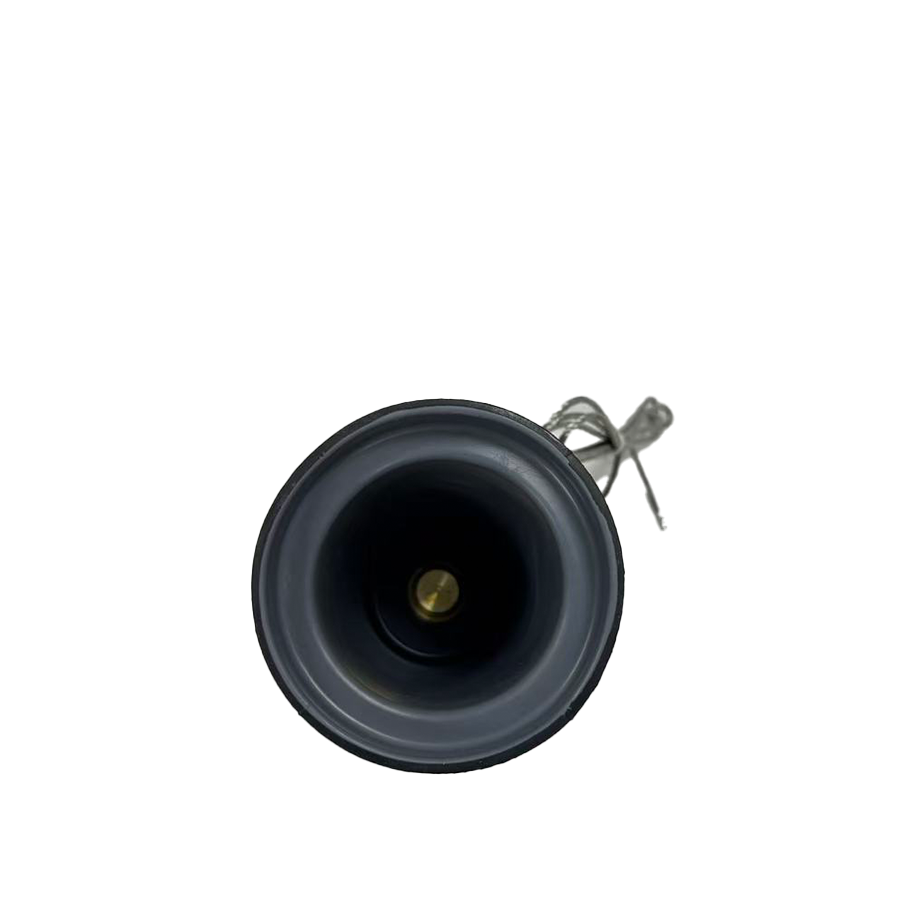

AJYM Insulated protective cap can
be used for temporary or
permanent applications, provides
a submersible, fully shielded
insulated and sealing for energized
bushings, juntions.
Features
• Quick and easy assembly
• Superior electrical performance
• Full insulated, full sealed, full
shielded
• Excellent safty, touchable
Design
1. End Cover body
conductive silicon insert
Insulating silicon layer
Conductive silicon jacket
2. Screw
3. Earth lead
Delivery scope
• Installation instructions
• 3 AJYM Insulated protecitve cap
Quality guarantee:
• Periodic X-Ray analysis
• Each body is tested for AC withstand
and partial discharge before deliverying
• QR code: 100% traceable
IEEE592 Standard Compliance: Outer semiconducting layer uses prefabricated EPDM conductive rubber meeting IEEE592 standards.
High Voltage Insulation: Provides fully shielded, submersible insulating cover for 15kV/24kV energized bushings.
Durable Stainless Steel Ring: Operating ring made of stainless steel to facilitate easy installation and operation.
Premium EPDM Insulation: Unique formula and mixing technology ensure high-quality pre-EPDM insulation rubber.
Flexible Customization: Offers full customization, minor customization, and customization from samples or designs.
100% Quality Inspection: Finished products undergo strict visual and function inspection before shipment.
Versatile Application: Suitable for permanent or temporary installation on 200A bushings and junctions.
Complete Installation Kit: Includes cap, clearing paper, silicone lubricant, instruction sheet, and quality certificate.
